CENTRIFUGAL MONOBLOC PUMPS

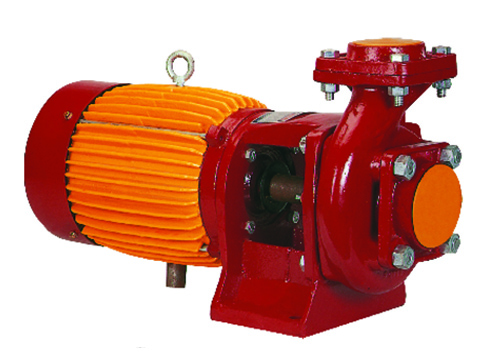

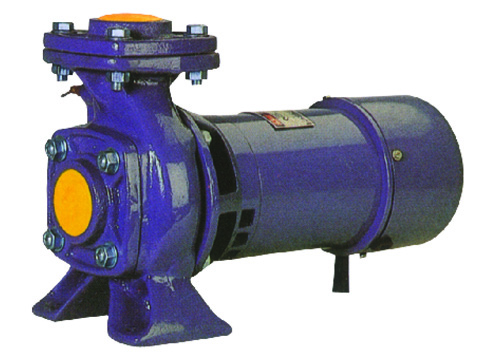

CENTRIFUGAL MONOBLOC PUMPS - Three Phase


Available in TEFC only.

Impeller : CI.

Mechanical Seal : Ceramic & Graphite Self lubricated double ball bearing.

Volute casing is made of close grained cast iron in 3 Ph Pumps.

HP Head range (MTS) Discharge (LPM)
3.0 HP and 5.0 HP 6 to 48 130 to 1250
  • Most modern and latest in design.
  • Low power consumption.
  • All units or thoroughly tested.
  • Silent, Vibration - Free running.
  • Domestic Water Supply.
  • Lawn & Garden Watering.
  • Storage Tank Filling.
  • Industrial Service Water Supply.
S.NO HP KW TYPE SUC&DEL (mm)         Head in Meters
Discharge (LPM)
Discharge in LPM
6 9 12 15 18 21 24 27 30 33 36 39 42 45 48
1 3.0 2.2 BC1 100 X 80 1040 850 500
2 3.0 2.2 BC2 80 X 65 800 720 500
3 3.0 2.2 BC3 80 X 65 600 560 490
4 3.0 2.2 BC4 65 X 50 520 480 340
5 3.0 2.2 BC5 65 X 50 320 295 270 220
6 3.0 2.2 BC6 50 X 40 210 200 185 170 130
7 5.0 3.7 BC1 100 X 80 1250 1160 1000 900
8 5.0 3.7 BC2 80 X 65 1110 960 820 700
9 5.0 3.7 BC3 80 X 65 650 630 500 400
10 5.0 3.7 BC4 65 X 50 660 600 540 360
11 5.0 3.7 BC5 65 X 50 395 355 320 270
12 5.0 3.7 BC6 50 X 40 230 220 210 200 170 130
The above performance are based on a means supply voltage of 415 V - 3 ph, 50 Cycles.
