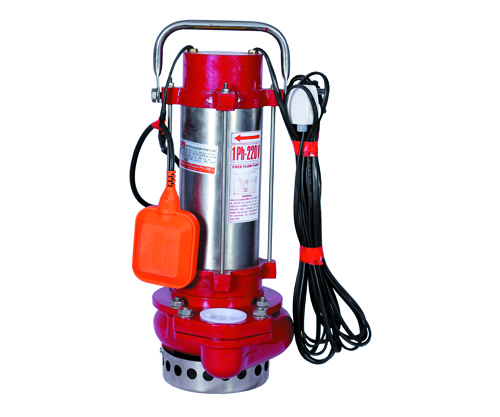

Carbon bush bearing combination improves the life and efficiency of the motor.
Motor body is made of heavy duty stainless steel tube.
Single phase - 220 V.
Dewatering pump supplied with 10 meter 1.5 square mm flat cable, 15Amps power plug and water switch.
Instruction: Before installing the pump, Do not fill the water before standing in Dewatering pumps.
| Head range (MTS) | Discharge (LPM) |
|---|---|
| 4 to 12 | 114 to 430 |
- Most modern & Latest design.
- Superior design materials.
- Components are made of selective materials.
- Easy installation.
- Silent, vibration - Free running.
- Impeller : CI.
- Suitable for pumping waste water with solid particles upto 15mm size mixed.
- Storm and Drain pumping.
- Mine dewatering.
- Sumps and swimming pools dewatering.
| S.NO | HP | KW | TYPE | PIPE SIZE (mm) | Head in Meters | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Discharge (LPM) | 4 | 6 | 8 | 10 | 12 | ||||||||||||||
| 1 | 1.0 | 0.75 | OWFF | 50 | 326 | 294 | 254 | 199 | |||||||||||
| 2 | 1.5 | 1.1 | OWFF | 50 | 430 | 390 | 328 | 248 | 114 | ||||||||||
